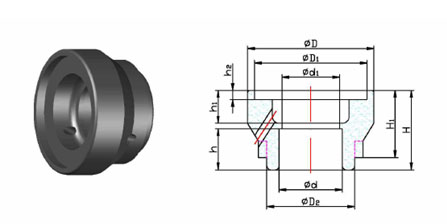

减震器导向器A
| 本司图号 | ФD | ФD1 | ФD2 | Фd | Фd1 | H | H1 | h | h1 | h2 |
| WF020 | Ф54.0 | Ф49.0 | Ф36.0 | Ф17.0 | Ф16.0 | 26 | 18.5 | 13.2 | 11.5 | 4.9 |
| WF020-A | Ф54.0 | Ф49.0 | Ф36.0 | Ф17.0 | Ф16.0 | 26 | 18.5 | 12 | 12.5 | 5.7 |
| WF052 | Ф47.0 | Ф39.0 | Ф30.0 | Ф17.0 | Ф15.5 | 26 | 20 | 12.5 | 11 | 3 |
| WF060 | Ф53.0 | Ф42.0 | Ф36.0 | Ф28.0 | Ф26.0 | 29 | 23 | 17 | 9.3 | 3.3 |
| WF105 | Ф61.0 | Ф57.0 | Ф45.0 | Ф18.0 | ／ | 35 | 29 | ／ | 11 | 3 |
| WF201 | Ф46.9 | Ф41.2 | Ф30.0 | Ф23.0 | Ф21.0 | 30 | 24 | 15.3 | 12.5 | 3.8 |
| WF202 | Ф46.9 | Ф41.2 | Ф30.0 | Ф23.0 | Ф20.8 | 30 | 24 | 16 | 12 | 3.7 |
| WF203 | Ф42.5 | Ф37.0 | Ф30.0 | Ф14.4 | Ф13.2 | 26.5 | 20.5 | 13.2 | 12 | 2.8 |
| WF209 | Ф40.0 | Ф34.8 | Ф25.0 | Ф20.0 | Ф18.0 | 24 | 18 | 12.5 | 10 | 3.2 |
| WF215 | Ф36.4 | Ф30.6 | Ф27.0 | Ф15.0 | Ф13.4 | 18.5 | 13.5 | 8 | 9 | 3 |
| WF213 | Ф53.9 | Ф48.0 | Ф35.0 | Ф31.0 | Ф29.0 | 30 | 24 | 15.5 | 12.5 | 3.5 |
| WF232 | Ф38.0 | Ф32.0 | Ф27.0 | Ф14.4 | Ф13.0 | 20.5 | 14.5 | 8.6 | 10.5 | 3 |
| WF237 | Ф36.0 | Ф30.0 | Ф30.0 | Ф16.5 | Ф14.0 | 27 | 22.5 | 10.4 | 12 | 2.8 |
| WF238 | Ф36.0 | Ф30.0 | Ф25.0 | Ф16.5 | Ф14.0 | 27 | 22.5 | 10.4 | 12 | 2.8 |
| WF265 | Ф45.0 | Ф40.0 | Ф32.0 | Ф21.0 | Ф19.0 | 28 | ／ | 15 | 10.5 | 3.3 |
| WF266 | Ф36.0 | Ф32.0 | Ф27.0 | Ф14.0 | Ф12.0 | 19.2 | 15.2 | 7 | 9.8 | 2.8 |
| WF281 | Ф43.0 | Ф37.0 | Ф30.0 | Ф15.5 | Ф13.0 | 21 | 16 | 8 | 10 | 2.8 |
| WF282 | Ф40.0 | Ф36.0 | Ф30.0 | Ф15.5 | Ф13.0 | 21 | 16 | 8 | 10 | 3.5 |
| WF283 | Ф40.0 | Ф36.0 | Ф27.0 | Ф15.5 | Ф13.0 | 21 | 16 | 8 | 10 | 3.5 |
| WF291 | Ф47.3 | Ф42.1 | Ф36.0 | Ф28.0 | Ф26.0 | 36 | 31 | 17 | 13 | 3.4 |
| WF297 | Ф43.5 | Ф39.0 | Ф32.0 | Ф17.0 | Ф15.8 | 28.5 | 23.5 | 15 | 12 | 3.4 |
| WF297-A | Ф43.0 | Ф39.0 | Ф30.0 | Ф17.0 | Ф15.8 | 28.5 | 22 | 15 | 12 | 3.8 |
| WF298 | Ф42.5 | Ф34.8 | Ф30.0 | Ф23.0 | Ф21.0 | 29 | 24.5 | 15 | 9 | 3 |
| WF299 | Ф43.0 | Ф35.5 | Ф27.0 | Ф14.4 | Ф13.0 | 20.5 | 14.5 | 8.6 | 10.5 | 3.2 |
| WF300 | Ф42.5 | Ф39.0 | Ф30.0 | Ф23.0 | Ф21.0 | 27.5 | 19.5 | 15 | 10.8 | 2.8 |
| WF331 | Ф41.5 | Ф35.0 | Ф30.0 | Ф25.0 | Ф22.8 | 30 | 24 | 16 | 12 | 2.8 |
| WF332 | Ф40.0 | Ф34.0 | Ф30.0 | Ф23.0 | Ф20.8 | 30 | 24 | 16 | 12 | 3 |
| WF334 | Ф46.9 | Ф41.0 | Ф32.0 | Ф25.0 | Ф22.8 | 30 | 24 | 16 | 12 | 3.5 |
| WF348 | Ф39.5 | Ф35.0 | Ф32.0 | Ф25.0 | Ф23.5 | 26.2 | 22.5 | 12.5 | 11.7 | 2.8 |
| WF348-B | Ф39.5 | Ф35.0 | Ф30.0 | Ф25.0 | Ф23.5 | 26.5 | 22.5 | 12.5 | 12 | 2.8 |
| WF349 | Ф36.0 | Ф32.0 | Ф27.0 | Ф14.4 | Ф13.0 | 20.5 | 14.5 | 8.6 | 10.5 | 2.8 |
| WF349-B | Ф36.0 | Ф32.0 | Ф27.0 | Ф14.5 | Ф13.0 | 21.5 | 16.5 | 8.5 | 10.5 | 2.8 |
| WF349-C | Ф36.0 | Ф32.0 | Ф25.0 | Ф14.4 | Ф13.0 | 24 | 18 | 10.5 | 12 | 2.8 |
| WF349-D | Ф36.0 | Ф32.0 | Ф30.0 | Ф14.4 | Ф13.0 | 20.5 | 14.5 | 8.6 | 10.5 | 2.8 |
| WF353 | Ф46.0 | Ф41.0 | Ф32.0 | Ф23.0 | Ф21.0 | 29 | 24.5 | 16 | 12 | 3.3 |
| WF353-D | Ф46.0 | Ф41.0 | Ф30.0 | Ф23.0 | Ф21.0 | 29 | 24.5 | 15 | 12 | 3.3 |
| WF353-B | Ф44.0 | Ф41.0 | Ф30.0 | Ф23.0 | Ф21.0 | 29 | 24.5 | 15 | 12 | 3.3 |
| WF358 | Ф41.0 | Ф37.0 | Ф30.0 | Ф23.0 | Ф20.8 | 30 | 24 | 16 | 11 | 3.5 |
| WF359 | Ф41.0 | Ф37.0 | Ф30.0 | Ф23.0 | Ф20.8 | 27 | 21 | 15 | 10 | 3.4 |
| WF369 | Ф43.4 | Ф38.8 | Ф30.0 | Ф18.0 | Ф16.0 | 22.7 | 18.7 | 10.4 | 10.5 | 3.8 |
| WF381 | Ф44.4 | Ф38.0 | Ф30.0 | Ф20.0 | Ф18.8 | 30 | 24 | 16 | 12 | 3 |
| WF382 | Ф44.4 | Ф39.0 | Ф30.0 | Ф23.0 | Ф20.3 | 30 | 24 | 16 | 12 | 3.6 |
| WF388 | Ф36.0 | Ф33.4 | Ф27.0 | Ф13.0 | Ф12.0 | 20.5 | 14.5 | 8.5 | 10.5 | 2.9 |
| WF389 | Ф42.4 | Ф39.0 | Ф30.0 | Ф23.0 | Ф21.0 | 26 | ／ | 15 | 8.8 | 2.8 |
| WF450 | Ф64.0 | Ф54.0 | Ф50.0 | Ф20.0 | ／ | 34.5 | 29.5 | ／ | 11 | 3.8 |
| WF453 | Ф41.9 | Ф37.0 | Ф30.0 | Ф23.0 | Ф20.8 | 30 | 24 | 16 | 12 | 3.2 |
| WF454 | Ф39.9 | Ф35.0 | Ф30.0 | Ф25.0 | Ф22.8 | 30 | 24 | 16 | 12 | 2.8 |
| WF458 | Ф47.0 | Ф41.2 | Ф32.0 | Ф23.0 | Ф20.3 | 30 | 24 | 16 | 12 | 3.5 |
| WF471 | Ф42.0 | Ф34.8 | Ф25.0 | Ф20.0 | Ф19.0 | 24 | 18 | 12.5 | 10 | 3.5 |
| WF472 | Ф42.0 | Ф34.8 | Ф30.0 | Ф23.0 | Ф21.0 | 24 | 18 | 12.5 | 10 | 3.1 |
| WF473 | Ф48.0 | Ф41.0 | Ф30.0 | Ф25.0 | Ф23.0 | 26 | 20 | 12.5 | 12 | 3.7 |
| WF474 | Ф45.4 | Ф41.3 | Ф30.0 | Ф23.0 | Ф21.0 | 30 | 24 | 16 | 12 | 3.9 |
| WF475 | Ф42.0 | Ф37.0 | Ф30.0 | Ф23.0 | Ф21.0 | 26 | 20 | 12.5 | 12 | 3.7 |
| WF480 | Ф57.0 | Ф48.0 | Ф35.0 | Ф31.0 | Ф28.0 | 30 | 24 | 15.5 | 12.5 | 3.5 |
