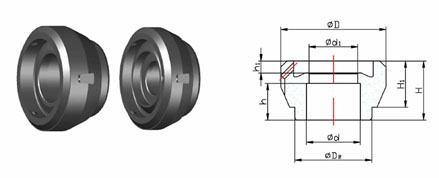

减震器导向器D
| 本司图号 | ФD | ФD2 | Фd | Фd1 | H | H1 | h | h1 |
| WF015 | Ф47.0 | Ф32.0 | Ф25.0 | Ф22.6 | 26 | 22 | 17 | 2 |
| WF016 | Ф50.0 | Ф35.0 | Ф28.0 | Ф25.6 | 25 | 21 | 17 | 2 |
| WF019 | Ф36.0 | Ф27.0 | Ф23.0 | Ф20.6 | 22 | 17 | 14.3 | 5.4 |
| WF205 | Ф48.0 | Ф36.0 | Ф20.0 | Ф19.0 | 25 | 14.5 | 14.5 | 1.5 |
| WF205-A | Ф48.0 | Ф36.0 | Ф20.0 | Ф19.0 | 21 | 14.5 | 10.5 | 1.5 |
| WF274 | Ф46.0 | Ф32.0 | Ф25.0 | Ф22.6 | 23 | 18 | 14.3 | 4.7 |
| WF276 | Ф43.0 | Ф32.0 | Ф18.0 | Ф15.6 | 23 | 18 | 14.3 | 1.9 |
| WF277 | Ф41.0 | Ф30.0 | Ф21.0 | Ф19.0 | 23 | 18 | 14.3 | 4.7 |
| WF278 | Ф49.0 | Ф35.0 | Ф19.0 | Ф16.6 | 23 | 18 | 14.3 | 2 |
| WF284 | Ф36.0 | Ф27.0 | Ф21.0 | Ф18.6 | 25 | 20 | 16.5 | 5.2 |
| WF285 | Ф46.0 | Ф32.0 | Ф23.0 | Ф20.6 | 23 | 18 | 14.3 | 2 |
| WF285-A | Ф46.0 | Ф30.0 | Ф23.0 | Ф20.6 | 23 | 18 | 14.3 | 2 |
| WF289 | Ф41.0 | Ф30.0 | Ф23.0 | Ф20.6 | 28 | 23 | 18 | 4.7 |
| WF371 | Ф53.5 | Ф44.3 | Ф25.0 | Ф22.6 | 22 | 17 | 14.3 | 1.5 |
| WF373 | Ф49.0 | Ф32.0 | Ф17.0 | Ф14.6 | 23 | 12 | 14.3 | 5.2 |
| WF400 | Ф51.0 | Ф32.0 | Ф25.0 | Ф22.6 | 27 | 22 | 17 | 2 |
| WF419 | Ф38.0 | Ф27.0 | Ф15.5 | Ф13.2 | 18 | 14 | 10.3 | 4.7 |
| WF420 | Ф40.0 | Ф30.0 | Ф15.5 | Ф13.2 | 18 | 13 | 10.3 | 2 |
| WF421 | Ф40.0 | Ф27.0 | Ф15.5 | Ф13.2 | 18 | 13 | 10.3 | 2 |
| WF422 | Ф36.0 | Ф27.0 | Ф15.5 | Ф13.2 | 18 | 14 | 10.3 | 4.7 |
| WF423 | Ф41.0 | Ф30.0 | Ф23.0 | Ф20.6 | 22 | 17 | 14.3 | 4.7 |
| WF424 | Ф46.0 | Ф35.0 | Ф25.0 | Ф22.6 | 23 | 18 | 14.3 | 4.7 |
| WF425 | Ф44.0 | Ф32.0 | Ф23.0 | Ф20.6 | 23 | 18 | 14.3 | 4.7 |
| WF426 | Ф47.0 | Ф32.0 | Ф18.0 | Ф15.6 | 23 | 18 | 14.3 | 2 |
| WF427 | Ф47.0 | Ф30.0 | Ф18.0 | Ф15.6 | 23 | 18 | 14.3 | 2 |
| WF428 | Ф49.0 | Ф40.0 | Ф19.0 | Ф16.6 | 29 | 24 | 12.3 | 2 |
| WF429 | Ф42.0 | Ф32.0 | Ф25.0 | Ф22.6 | 24 | 20 | 15 | 4.7 |
| WF430 | Ф53.0 | Ф40.0 | Ф31.0 | Ф29.0 | 27 | 22 | 17.3 | 5 |
| WF432 | Ф46.0 | Ф35.0 | Ф23.0 | Ф20.6 | 26 | 21 | 17.3 | 2 |
| WF433 | Ф47.0 | Ф32.0 | Ф15.5 | Ф13.2 | 23 | 18 | 10.5 | 2 |
| WF434 | Ф49.0 | Ф35.0 | Ф25.0 | Ф22.6 | 23 | 18 | 14.3 | 4.7 |
| WF435 | Ф42.0 | Ф30.0 | Ф23.0 | Ф20.6 | 22 | 17 | 14.3 | 4.7 |
| WF436 | Ф43.0 | Ф30.0 | Ф15.5 | Ф13.2 | 18 | 13 | 10.3 | 2 |
| WF437 | Ф38.0 | Ф30.0 | Ф25.0 | Ф22.6 | 23.5 | 19.5 | 14.5 | 4.7 |
| WF438 | Ф40.0 | Ф30.0 | Ф23.0 | Ф20.6 | 28 | 23 | 18 | 4.7 |
